BlueVision

Lens

BlueVision’s lenses are dedicatedly designed for prism spectroscopic cameras (4 sensor / 3 sensor / 2 sensor) and single sensor cameras which cover visible wavelength, NIR and SWIR.

Lens for Prism Spectroscopic Visible Light Camera

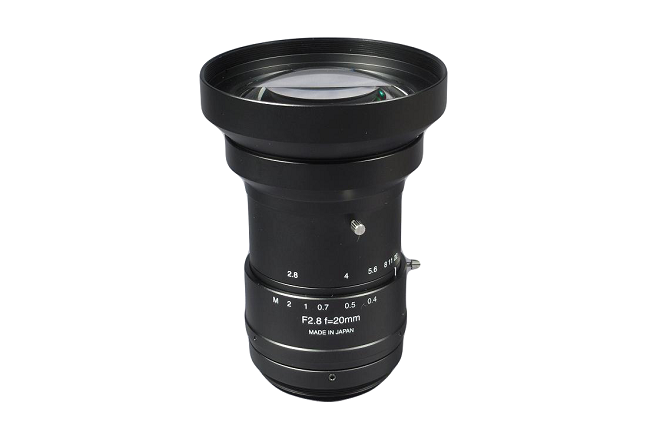

BV-L1020-M/F
Focal length 20mm
Product Details
BV-L1024-M/F
Focal length 24mm
Product Details

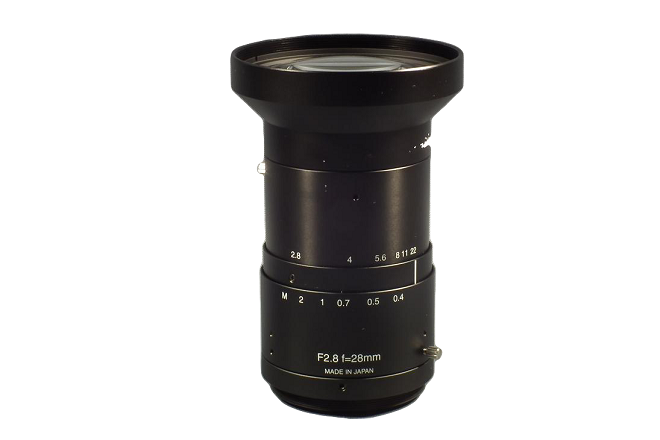

BV-L1028-M/F
Focal length 28mm
Product Details

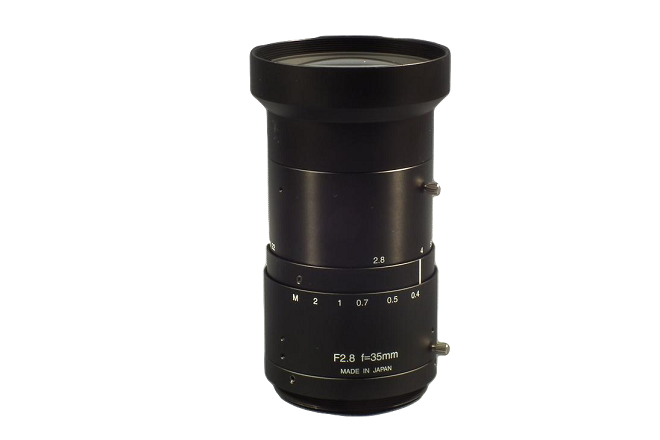

BV-L1035-M/F
Focal length 35mm
Product Details

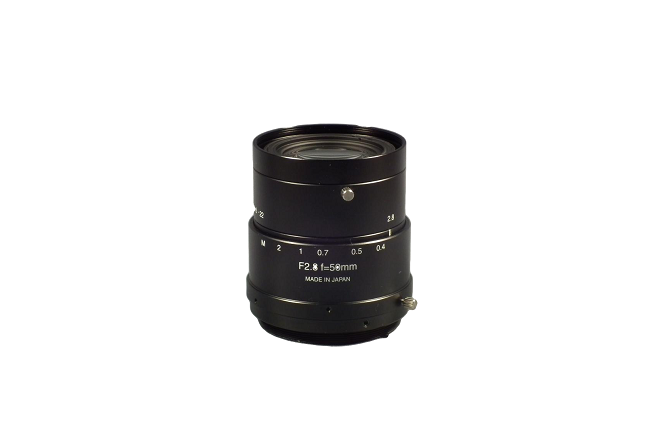

BV-L1050-M/F
Focal length 50mm
Product Details

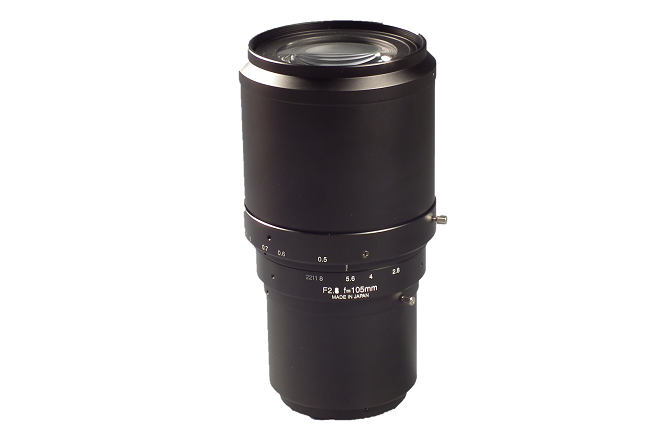

BV-L1105-M/F
Focal length 105mm
Product Details

Lens for Prism Spectroscopic SWIR Camera

BV-L1020-SWIR-M
Focal length 20mm
Product Details
BV-L1024-SWIR-M
Focal length 24mm
Product Details
BV-L1028-SWIR-M
Focal length 28mm
Product Details
BV-L1035-SWIR-M
Focal length 35mm
Product Details
BV-L1050-SWIR-M
Focal length 50mm
Product Details
BV-L1105-SWIR-M
Focal length 105mm
Product Details

C Mount Lens

BlueVision’s C mount lens series are those which are converted from M52 mount to C mount using conversion adaptor, and there are two types according to their applications.

C Mount Lens for Prism Spectroscopic Visible Light Camera
  Focal Length
BV-L1020-C 20mm
BV-L1024-C 24mm
BV-L1028-C 28mm
BV-L1035-C 35mm
BV-L1050-C 50mm
BV-L1105-C  105mm
BV-L1050-CBV-L1050-C
C Mount Lens for Prism Spectroscopic SWIR Camera
  Focal Length
BV-L1020-SWIR-C 20mm
BV-L1024-SWIR-C 24mm
BV-L1028-SWIR-C 28mm
BV-L1035-SWIR-C 35mm
BV-L1050-SWIR-C 50mm
BV-L1105-SWIR-C 105mm
BV-L1050-SWIR-CBV-L1050-SWIR-C
Notes

・All knobs for fixing lens iris and focus are to be set with the torque value=3cN・m or less.
・We recommend to use jigs to support lens in a case of horizontal position setting.
・We recommend M52 mount for setting the lens in a place where the circumstances of its setting location has more than 3G vibration.
