Area Scan – 2 Sensor Prism Spectroscopic CameraBVC8250GC

BVC8250GC is a 2CMOS area scan camera which is tuned to detect only two specific wavelengths (570/655nm). The optical system of BVC8250GC consists of two type 1/1.8 5megapixels global shutter CMOS sensors with a high-quality spectroscopic prism. Full size readout is up to 80fps at 8bit mode, with even higher frame rates achieved using binning and ROI features. C-mount lenses and 10GigE compatible interface over SFP+ is supported.

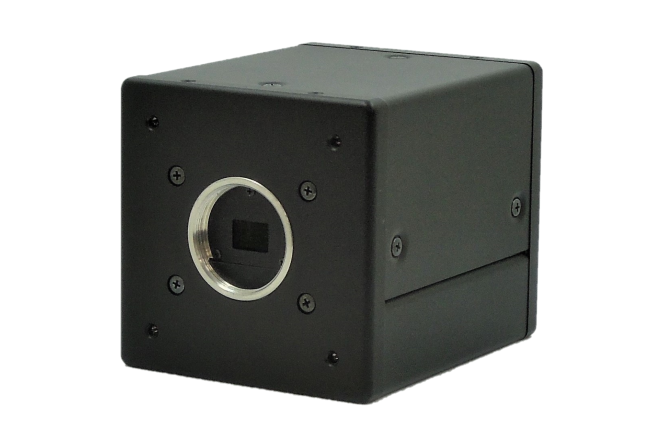

products image

Features

●　2 x 2448(H) x 1840(V) pixels, 2.74μm size, Global shutter CMOS area sensors
●　Full resolution readout: 80fps@8bit, binning mode: 200fps@8bit
●　Compact size, light weight
●　2 stream outputs (The output from each sensor is independent)
●　Precise shutter setting by 0.0135μs step
●　Gain adjustment from -6dB to +27dB
●　Partial scan readout (ROI) is available for faster capturing
●　Defective pixel correction, shading correction and LUT/gamma function
●　Internal/external trigger mode
●　2 types of electronic shutter modes (Timed, Trigger Width)
●　Interface : SFP+ (10GBase-T/10GBase-SR), GigE Vision 2.0
●　Original SDK is available (VC#, VC++ is supported)

Specification

Optics 1/2"　2 sensor spectral prism
Sensor 1/1.8"　B/W CMOS ×2,　2.74μm square
Bandwidth 570nm,　655nm
Effective image output 2448（H） × 1840（V）
Line frequency ―
Frame rate 80fps（max）
Interface 10GigE
Lens mount C mount
Dimensions (W×H×D) 70mm × 70mm × 85mm
Weight 420g
